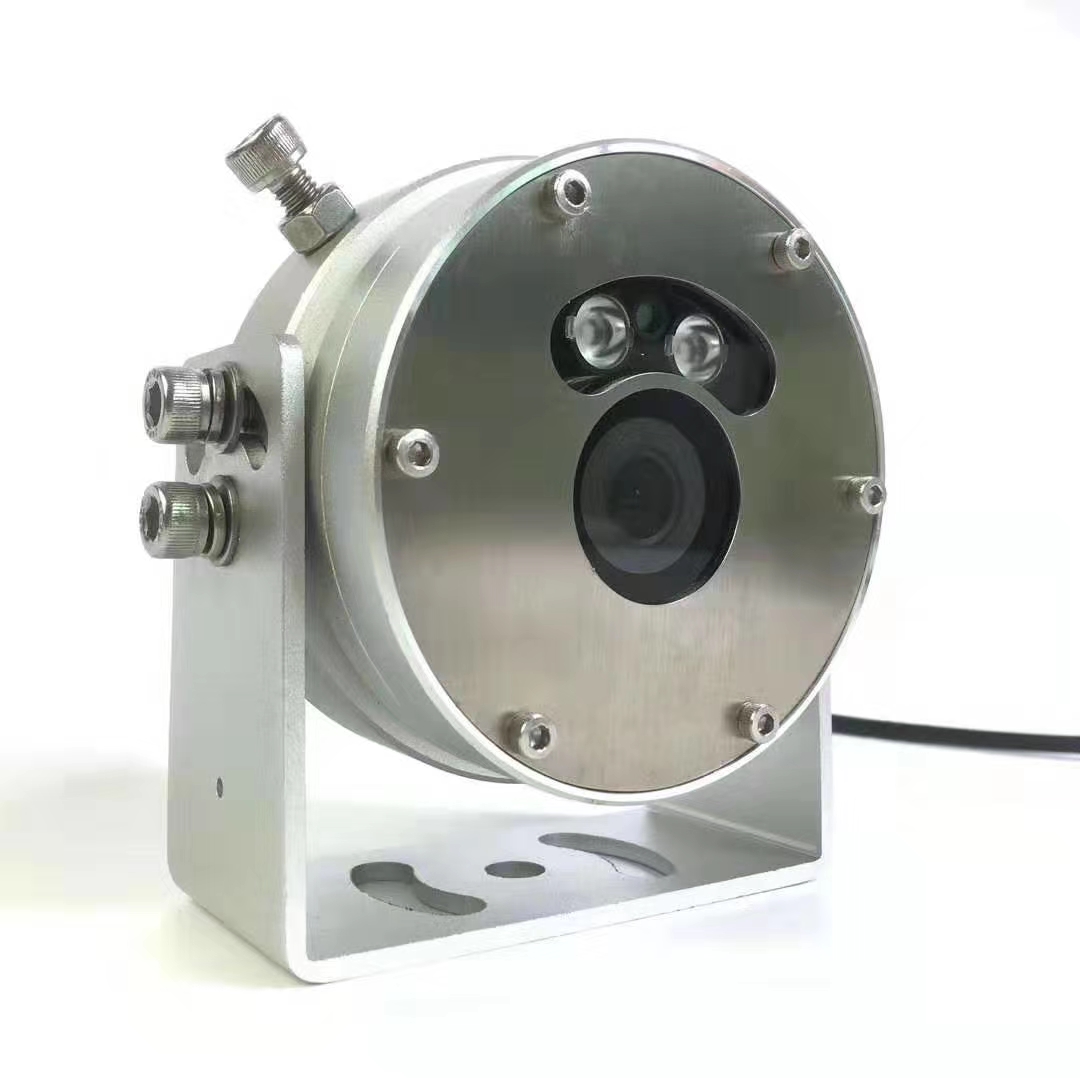

Suitable for variety of dangerous vehicles outdoor installation
Waterproof grade: IP68
Support WDR
Aluminum material
Model number | JK8（AHD720P） AHD 1080P optional | ||
Specification | Image sensor | 1/4 color CMOS，1.0MP | |
Image Resolution | 1280(H)x720(V) and 1920(H)x1080(V) Optional | ||
Minimum Illumination | 0.1 LUX / F1.2 | ||
Shutter Speed | 1/50S-1/100000S | ||
IR Distance | 15 Meters | ||
Day-Night IR-Cut | With | ||
Lens | 2.8 mm/3.6mm optional | ||
Resolution | 1280(H)x720(V) | ||
| Signal output | AHD | ||
Others | Temperature /Humidity | -20℃~+70℃ 0% - 90% | |
Power supply | 12V（Wide range 8v-15v） （IR lights on）<2.5w | ||
Waterproof grade | IP67 | ||
Video output connector | 4pin Aviation connector 1:Red 12V+，2：Black 12V-， 3：White audio signal，4: Yellow Video signal | ||
