Model | JK-001 |
CCD or CMOS | 1/3"CMOS 1080P |
Video output Resolution | CVBS: 720x480 / AHD: 1280 x 720 |
TV System | PAL (50Hz) / NTSC (60Hz) / AHD25/ AHD30 |
Fisheye Correction | Without |
Video Output | 1V p-p, 75Ω, |
Audio Output | Null |
Power Consumption | DC9~16V |
A / V, Power Interface | RCA default, 6Pin BMW connector |
Dynamic range | ≥125dB |
Detection angle | FOV. H: 180° |
Visible angle | FOV.H: 140° |
Dimensions | (L x W x H) 28 x 28 x 32 mm |
Packing Size | (L x W x H) 160 x 137 x 55 mm |
Product Weight | Net: 320 g, All: 400 g |
Waterproof | IP67 For Housing |
Operating Condition | Temperature: -20°C to +70°C, Humidity<95% |
Housing | Metallic Materials, Black Default |
Ø Specifications are subject to change without prior notice

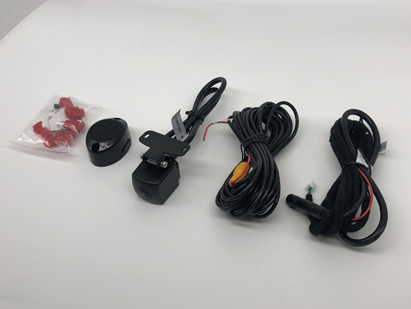

Packing List:
Item | Quantity | Photo | Item | Quantity | Photo |
Camera | 1 |
| Screw | 3 | |
Buzzer | 1 | Double side tap | 1 | ||
Extension cable | 1 | Power cable | 1 | ||
Cable clipper | 3 | Manual | 1 | ||
Remark: The picture is for reference only. Please be subject to the actual products. | |||||
